![](/storage/media/usa/product/03-electric-forklifts/Z_Series_ZFBT18-20/Z_Series_ZFBT18-20.png)
![](/storage/media/usa/product/03-electric-forklifts/Z_Series_ZFBT18-20/function01.jpg)
A large and easy-to-read multifunctional LCD panel is ergonomic designed for the operator.
![](/storage/media/usa/product/03-electric-forklifts/Z_Series_ZFBT18-20/function02.jpg)
- The ergonomic design of levers is provide the prefect positions for operator‘s hand without causing any extra stress.
- Multifunction armrests with F/R control lever make forward and reverse easier.
![](/storage/media/usa/product/03-electric-forklifts/Z_Series_ZFBT18-20/function03.jpg)
Optional advanced hydraulics Minlever and joystick with armrest are all new design gives more comfort to the operator.
![](/storage/media/usa/product/03-electric-forklifts/Z_Series_ZFBT18-20/function04.jpg)
Front Dual Drive Motor Reduce Small Turning Radius (Standard for FBT)
![](/storage/media/usa/product/03-electric-forklifts/Z_Series_ZFBT18-20/function05.jpg)
A strong no-bolt integral heavy duty chassis gives the driver 20% more protection from falling loads. Tailift forklifts built with Integral heavy duty chassis, suite for all kind working surface.
![](/storage/media/usa/product/03-electric-forklifts/Z_Series_ZFBT18-20/function06.jpg)
Our new hydraulic lock out system option which automatically lock off all hydraulic functions and transmission drive if it has not detected the presence of the operator.
![](/storage/media/usa/product/03-electric-forklifts/Z_Series_ZFBT18-20/function07.jpg)
- The new axle provides wider steering angles to 85 degree and reduces to a smaller turning radius.
- Its compact size, allows the truck to work in narrower aisles.
- Using high and low blockage fixed way to fix shaft, extend working life time and lower maintenance cost.
- Grease nipples located on the contact points will save time and cost to do maintenance.
![](/storage/media/usa/product/03-electric-forklifts/Z_Series_ZFBT18-20/function09.jpg)
- Smaller steering wheel (300mm)easy to operate and reduce operator‘s arm and shoulder’s workload.
- The easy-handling steering wheel column with tilt adjustment.
![](/storage/media/usa/product/03-electric-forklifts/Z_Series_ZFBT18-20/function08.jpg)
Simplify mechanical linkage of vertical braking system to reduce drive component wear and tear. Extend brake pedal and mechanical working life.
![](/storage/media/usa/product/03-electric-forklifts/Z_Series_ZFBT18-20/function10.jpg)

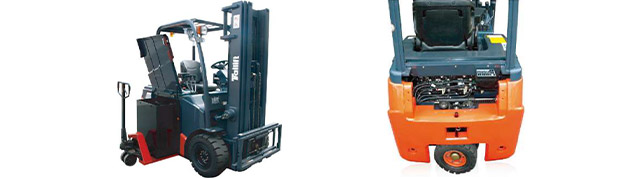

- Side battery access Side battery access is easy remove or exchange the truck battery facilitating.
- Rear service panel Rear service panel are easy remove for quick service check and repair.
- Centralized fuse box A centralized fuse box for easy inspection.
Model | ||
---|---|---|
Load capacity | 3500 lbs | 4000 lbs |
Length (w/o forks) | 79.9 in | 79.9 in |
Width | 42.9 in | 42.9 in |
Height (overhead guard) | 82.3 in | 82.3 in |
Travel speed (laden) | 8 mph | 8 mph |
Travel speed (unladen) | 8.6 mph | 8.6 mph |
Lift speed (laden) | 59 fpm | 59 fpm |
Lift speed (unladen) | 92.5 fpm | 92.5 fpm |
Turning radius | 62.6 in | 62.6 in |
Engine | N/A | N/A |
Controller | ZAPI | ZAPI |
Rated output / Speed | N/A | N/A |
Battery (min.capacity) | 505 AH/5HR | 505 AH/5HR |
![](/storage/media/usa/product/03-electric-forklifts/Z_Series_ZFBT18-20/list_Z_Series_ZFBT18-20.png)
