9L PLUS II 8000 - 12000 Lbs
9L PLUS II 8000 - 12000 Lbs
Internal Combustion Forklifts Cushion Tire
PFG36C-BCS / PFG45C-BCS / PFG55C-BCS

Function/Performance

Your Ultimate Solution for Efficiency and Safety in Tough Environments

  • 8,000-lb Capacity for heavy lifting
  • Transmission System for precise, long-lasting performance
  • Heavy-Duty Rear Axle with a 10% larger shaft and 80° steering angle
  • Wide View Mast & Low Front Console for 35% better visibility
  • Operator Comfort with spacious workspace, ergonomic seat and enlarged entry step
  • LED Lighting & Visual Alerts with 510 lumens and blue/red LED lights
Specifications



Model
Load capacity 8000 10000 12000
Power Type LPG LPG LPG
Forks (Thickness(s)×Width(e)×Length(l)) 1.6x4.8x42 in
Turning radius 83.7 in 80.3 in 89 in
Tire Type (P=Air Pneumatic, S=Solid Pneumatic, C=Cushion) C/C
Travel speed (unladen) 11.8 mph 10.6 mph 10.6 mph
Travel speed (laden) 12.5 mph 10 mph 10 mph
Lift speed (unladen) 17.8 fph 15.6 fph 15.6 fph
Lift speed (laden) 19.6 fph 21.2 fph 21.2 fph
Engine KUBOTA KUBOTA KUBOTA
Controller N/A N/A N/A
Options

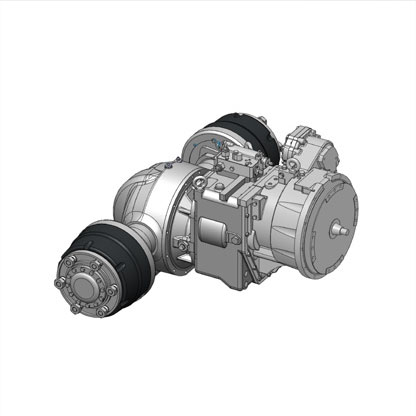

Transmission System
Transmission System

Durability & Precision: A backbone structure transmission system with Japanese-made oil seals and bearings ensures smooth power conversion and long-lasting performance.

Electronic Control Lever: Effortlessly operates without disrupting the steering wheel control.

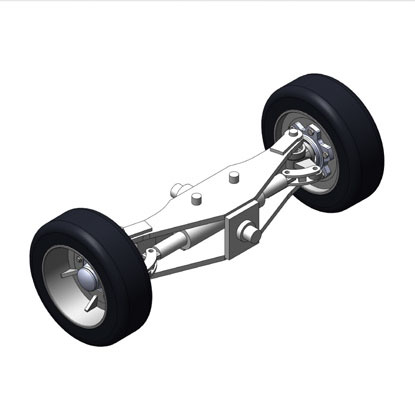

Heavy-Duty Rear Axle
Heavy-Duty Rear Axle

Robust Design: Tailift made rear axle with a 10% enlarged shaft to increase the strength and durability for heavy-duty usage.

Wider Steering Angle: The axle provides wider steering angle to 80 degree and reduces to smaller turning radius.

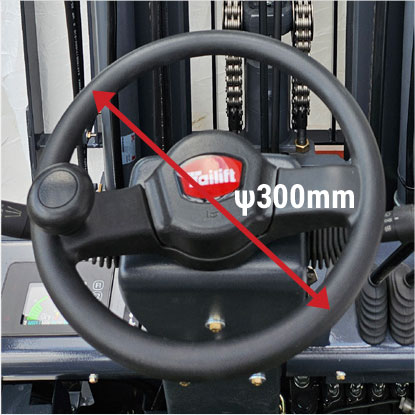

Steering Wheel & Column
Steering Wheel & Column

Smaller Steering Wheel: A smaller ψ300mm steering wheel is easy to operate and minimize the operator's arm fatigue during long hours operation.

Adjustable Steering Column: Compact steering column panel with a range of up to 14 degrees to accommodate ergonomic needs for the driver.

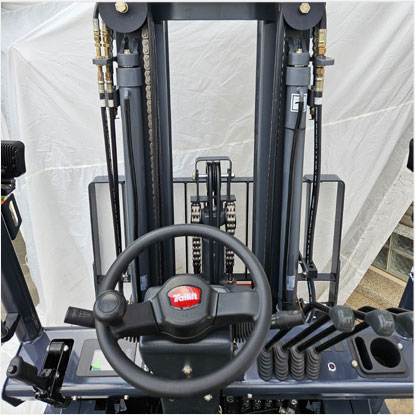

Wide View Mast & Lower Front Console Design
Wide View Mast & Lower Front Console Design

Increased Visibility: Hidden piping system and reduced mast obstructions provide 35%better visibility, improving safety when driving and transporting goods.

Lower Front Console Design: A 47° angle of visibility ensures enhanced safety by improving the operator’s field of view of the forklift and surrounding area.
