Z Series 1.8-3.0T
Z Series 1.8-3.0T
Internal Combustion Forklifts Cushion Tire
Easy Operation
Multifunctional Instrument Panel

Easy read instrument panel installs in between steering wheel and left front side wind shield. It display the status of forklift performance without interfering by steering wheel operations.

Adjustable Steering Wheel Column

Compact steering column panel is with streamline design. Provide flexible operations & great comfort.

High Stability
Hand Brake

Hand brake is equipped with micro switch to aviod inproper touch accidently and to ensure the safety.

LED Light

Independent front light and directional lights. Provide longer service life with much lower power consumption.

Integral Heavy Duty Chassis

A strong no-bolt integral heavy duty chassis gives the driver more protection from falling loads, suite for all kind working surface.

Great Performance
Small Steering Wheel + New Rear Axle = EASY AND SMOOTH TURNING

Smaller 300mm steering wheel easy to operate and reduce operator's arm and shoulder's workload. The new axle provides wider steering angles to 80 degree and reduces to a smaller turning radius.

High Performance Low Fuel Consumption Engines

The strong but low emission engine will satisfy the operators in any given circumstance, time and time again. New 9L Plus series using high performance and low fuel consumption engines include Isuzu, Yanmar and Nissan engines. All engines meet latest emission regulations.

Internal Hidden Tilt Cylinder

Internal tilt cylinder avoids and reduces scrape possibility. Enlarge access space and given better appearance.

Non-Slip Entry Step

Large foot space and non-slip make the operator get on and get off the vehicle more easily.

Hydraulic Control Levers

The mechanical-hydraulic control lever disposed at the front of the panel. The ergonomic headlines designed to help reduce the driver‘s arm fatigue.

Comfortable Seat
  • Ergonomic sharp design and adjustable backrest.
  • Adjustable forward and reverse.
  • Retractable safety belt.
  • Document bag.

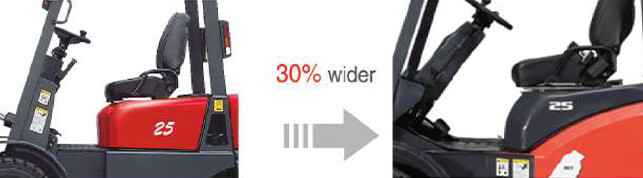

Spacious Operation Space

Accelerate/Brake/ Inching pedal all configurations with ergonomic design. Wide-open foot space provides the comfortable foot activity space. It is about 30% wider than 7 series.
The enlarged space give operator great comfortable and less stress, make the operator get on or get off the vehicle more easily.

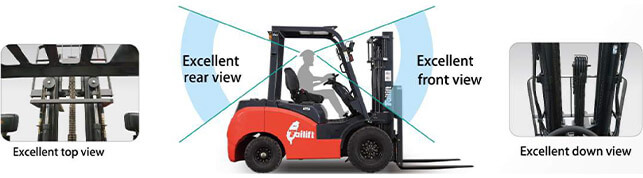

Clear View For Operator



Load capacity 3500 lbs 5000 lbs 6000 lbs
Length (w/o forks) 85.2 in 92.5 in 92.5 in
Width 38 in 44.4 in 44.4 in
Height (overhead guard) 80.3 in 84.3 in 84.3 in
Travel speed (laden) 8.1 mph 9 mph 9 mph
Travel speed (unladen) 8.1 mph 9.3 mph 9.3 mph
Lift speed (laden) 139.8 fpm 103.1 fpm 103.1 fpm
Lift speed (unladen) 141.7 fpm 107.9 fpm 107.9 fpm
Turning radius 75.4 in 80.3 in 90.3 in
Engine WG2503-L-E3 WG2503-L-E3 WG2503-L-E3
Controller N/A N/A N/A
Rated output / Speed 41.5@2700 kW/rpm 41.5@2700 kW/rpm 41.5@2700 kW/rpm
Battery (min.capacity) N/A N/A N/A

Swing-Down Bracket

Swing- Out LPG Bracket

Dual Wheel

Mast Lock


Climate Controlled Full Cabin

Pre-Cleaner Engine Air Intake

Side Shift

Hinged Fork

Rotating Fork


Bale Clamp
