High-performance engines provide our forklifts with a powerful advantage. Delivering undeniable efficiency and reliability, equip with the material handling industry’s highest-performing engines. Satisfying rigid EPA Tier 4 + EU Stage V emissions regulations.
![](/storage/media/usa/product/01-internal-combustion-forklifts-pneumatic-tire/Z_Series_ZFD20P-36P/function01.jpg)
Easy read instrument panel installs in between steering wheel and left front side wind shield. It display the status of forklift performance without interfering by steering wheel operations.
![](/storage/media/usa/product/01-internal-combustion-forklifts-pneumatic-tire/Z_Series_ZFD20P-36P/function02.jpg)
Compact steering column panel is with streamline design. Provide flexible operations & great comfort.
![](/storage/media/usa/product/01-internal-combustion-forklifts-pneumatic-tire/Z_Series_ZFD20P-36P/function03.jpg)
Hand brake is equipped with micro switch to aviod inproper touch accidently and to ensure the safety.
![](/storage/media/usa/product/01-internal-combustion-forklifts-pneumatic-tire/Z_Series_ZFD20P-36P/function04.jpg)
Independent front light and directional lights. Provide longer service life with much lower power consumption.
![](/storage/media/usa/product/01-internal-combustion-forklifts-pneumatic-tire/Z_Series_ZFD20P-36P/function05.jpg)
A strong no-bolt integral heavy duty chassis gives the driver more protection from falling loads, suite for all kind working surface.
![](/storage/media/usa/product/01-internal-combustion-forklifts-pneumatic-tire/Z_Series_ZFD20P-36P/function06.jpg)
Smaller 300mm steering wheel easy to operate and reduce operator's arm and shoulder's workload. The new axle provides wider steering angles to 80 degree and reduces to a smaller turning radius.
![](/storage/media/usa/product/01-internal-combustion-forklifts-pneumatic-tire/Z_Series_ZFD20P-36P/function07.jpg)
![](/storage/media/usa/product/01-internal-combustion-forklifts-pneumatic-tire/Z_Series_ZFD20P-36P/function09.jpg)
Internal tilt cylinder avoids and reduces scrape possibility. Enlarge access space and given better appearance.
![](/storage/media/usa/product/pro_function.jpg)
Large foot space and non-slip make the operator get on and get off the vehicle more easily.
![](/storage/media/usa/product/01-internal-combustion-forklifts-pneumatic-tire/Z_Series_ZFD20P-36P/function10.jpg)
The mechanical-hydraulic control lever disposed at the front of the panel. The ergonomic headlines designed to help reduce the driver‘s arm fatigue.
![](/storage/media/usa/product/01-internal-combustion-forklifts-pneumatic-tire/Z_Series_ZFD20P-36P/function11.jpg)
- Ergonomic sharp design and adjustable backrest
- Adjustable forward and reverse
- Retractable safety belt
- Document bag
![](/storage/media/usa/product/01-internal-combustion-forklifts-pneumatic-tire/Z_Series_ZFD20P-36P/function12.jpg)

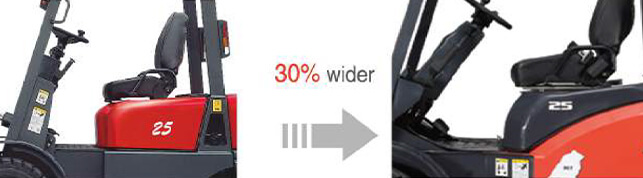

Accelerate/Brake/ Inching pedal all configurations with ergonomic design. Wide-open foot space
provides the comfortable foot activity space. It is about 30% wider than 7 series.
The enlarged space give operator great comfortable and less stress, make the operator get on or get
off the vehicle more easily.

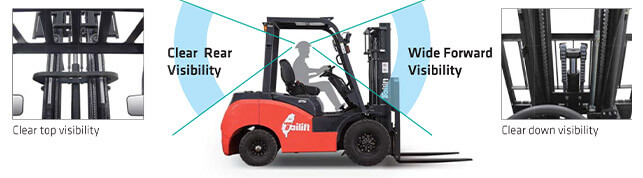

Clear View For Operator
![](/storage/media/usa/product/01-internal-combustion-forklifts-pneumatic-tire/Z_Series_ZFD20P-36P/function13.jpg)
Model | |||
---|---|---|---|
Load capacity | 5000 lbs | 6000 lbs | 8000 lbs |
Length (w/o forks) | 102.4 in | 108.7 in | 113.6 in |
Width | 45.4 in | 50 in | 50 in |
Height (overhead guard) | 83.9 in | 85.5 in | 85.5 in |
Travel speed (laden) | 10.5 mph | 10.5 mph | 10.5 mph |
Travel speed (unladen) | 11.2 mph | 11.2 mph | 11 mph |
Lift speed (laden) | 117.6 fpm | 86.4 fpm | 80.4 fpm |
Lift speed (unladen) | 133.3 fpm | 90.9 fpm | 90.2 fpm |
Turning radius | 87.8 in | 94.5 in | 102.4 in |
Engine | KUBOTA V2403 | KUBOTA V2403 | KUBOTA V2403 |
Controller | N/A | N/A | N/A |
Rated output / Speed | 43.2@2400 kW/rpm | 43.2@2400 kW/rpm | 43.2@2400 kW/rpm |
Battery (min.capacity) | N/A | N/A | N/A |
