9L 4 Wheel Cushion
9L 4 Wheel Cushion
Electric Forklifts
FB25C
Function/Performance
Easy Operation

Electric 4-Wheel Counterbalance Trucks

The easy-handing steering wheel provides the ideal operating positions and improves performance. Assist knob is help operator more easy to control.

A large and easy to see multifunction & compact instrument panel is perfectly in front of the operator. Three different operating modes are available for operator. Also feature with automatic detecting mistake and alarm message on display.

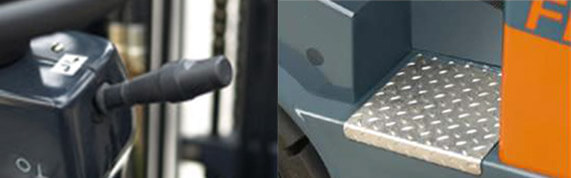

A low step height and secure surface provide operator safe entry and exit.

Great Performance

Hydraulic steer axle offer high steer angles with exceptional durability and lower maintenance cost.

Ergonomic design of the hydraulic control lever. The lifting and tilting function integrated in the mini lever as option, enable a quick direction and operation.

High Stability

Full AC controller features with sensitive responding, low maintenance and noise. Wet disc brake offer great friction coefficient and long working life.

AC hydraulic pump motor can be adjusted to low speed of output and provide sufficient power for turning and hydraulic function. It is a smooth, sensitive, no brush and quicker response.

Visibility & Ergonomics

High mounted rear combination lights which improved visibility in the working place.

Wide front vision mast extends visual ability while operating the mast. Better visibility brings greater safety and maximum productivity.

Deluxe suspension seat gives you the very best in customized comfort and safe. Flat and wide floor and enough headspace will obtain operator while driving. Cup base built in cup base is easy for operator to access drinks.

Specifications



Model
Load capacity 5000 lbs
Length (w/o forks) 83.7 in
Width 41.9 in
Height (overhead guard) 87.4 in
Travel speed (laden) 8.1 mph
Travel speed (unladen) 8.7 mph
Lift speed (laden) 11.4 fpm
Lift speed (unladen) 19.7 fpm
Turning radius 75.2 in
Engine N/A
Controller ZAPI
Rated output / Speed N/A
Battery (min.capacity) 555 AH/5HR
Options

Mast Lock

Cabin

Rain Guard (Standard: Acrylics; Option: Glass)

Climate Controlled Full Cabin

Side Shift
